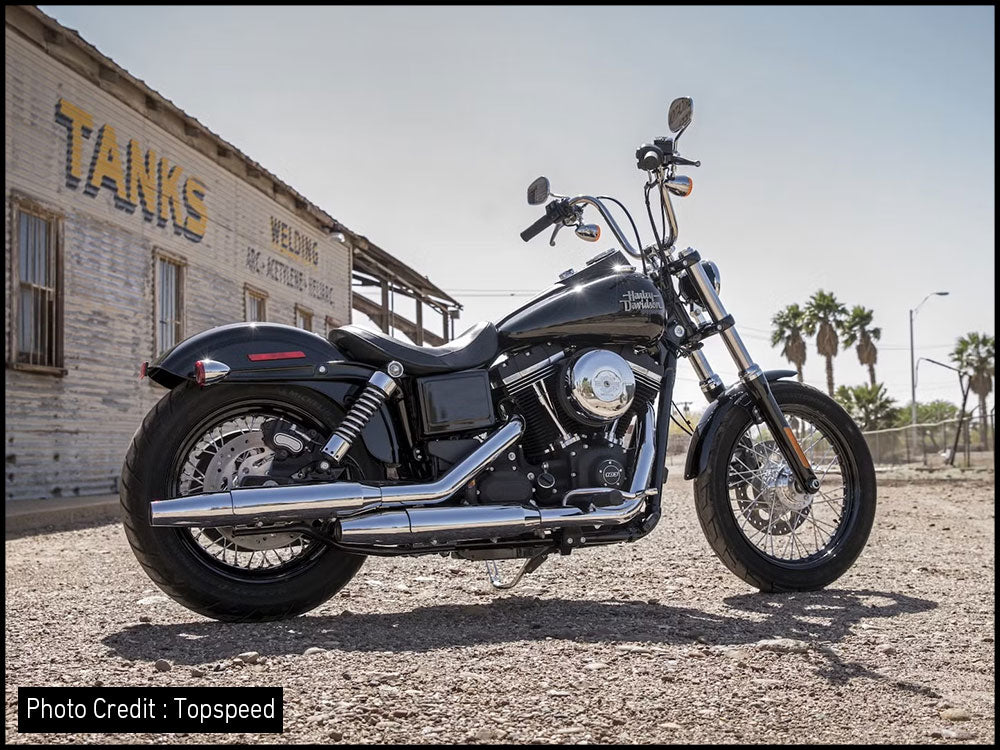

Harley-Davidson DYNA Street Bob FXDB: Detailed Specs, Background, Performance, and More

Harley-Davidson DYNA Street Bob FXDB: Detailed Specs, Background, Performance, and More

If you are a beginner and thinking of buying a Harley with pretty weight and aggressive styling, this motorcycle is made for you. Street bob is the dream motorcycle for young buyers. Dyna Street Bob is an entry-level motorcycle from Harley-Davidson which perfectly suits your budget like a glove.

Despite being the least expensive, it is extremely good to drive too. This motorcycle is inspired by age-old bobbers, you can strip your bike for the essentials to the max, without breaking any laws. With a moderately light frame and minimum distractions on the way.


Street Bob tends to be a little heavy as compared to other beginner-level motorcycles, but its compact design and low seating position can give you good control over the bike. If you think you can handle the weight for the first few rides, you will get used to it shortly.


Read through the end to find out why Harley-Davidson Dyna Street Bob is a great motorcycle.

1. Brief History of DYNA Street Bob FXDB

The modern Harley Dyna Street Bob was produced in 2006 as a throwback to the bobber. Right after World War II, these bikes became very popular, because these were actually the military bikes used in War. All Harleys that could be found in the U.S were equipped with military equipment like rifle mounts and ammunition boxes.


Civilians stripped them down for their casual use. In those times, the process of trimming them down and modifying those bikes was called “Bobber.” People see the lighter and prettier bikes after stripping them down because these bikes can be trimmed down to the bare minimum essentials. Harley-Davidson took the maximum advantage of this bike's popularity and sold out maximum units within a very short period of time.


There are a variety of changes that can be seen between the old and the new model. Though the classy look of this bike is still at sky limits and the low solo seats, fat tires, classic ape hanger handlebars, very well-known fat Bob fuel tanks took the minimalistic approach of the Harley Dyna SB to the heights.

2. DYNA Street Bob FXDB at First Glance

This is true, that most of our buying decisions are based on motorcycles’ looks. Dyna Street Bob passes the look test with its amazing color scheme, aggressive look, and great vibe at the same time. Despite being agile, its engine is more responsive. Although its low grunt might not be suitable for everyone, if that doesn't affect you, the bike is amusing.


Street Bob is designed with an 1868 cc (114 cu in) Milwaukee-Eight® 114 engine. This bike offers you a comfortable ride with mid-mount foot controls and a mini ape-hanger style handlebar, the authentic Fat bob fuel tank, silver-faced speedometer, and small headlight. It is a kind of bike which gives you premium looks and bulk of attitude while riding.


Furthermore, there is a fender chopped and topped with a curved, LED taillight, an attractive solo seat, and gloss black rims that give the compact look. If we talk about the chassis, the chassis is lightweight which improves the handling. Its low seat gives excellent control to the rider. High handlebars and riding position delivers a great experience for easy steering.

3. DYNA Street Bob FXDB: Buyer’s Guide

3.1 Is DYNA Street Bob FXDB a Good Beginner Bike?

If you are eyeing the Harley Dyna Street Bob as a beginner bike, you have reached the right place. This is an entry-level bike that fits with your budget as a beginner or a young buyer. Moreover, this model allows you to make plenty of modifications so if you are feeling uncomfortable with its high handlebars as a beginner you can always adjust the bars in front of you. This is a very friendly bike with smooth transmission and excellent handling.

3.2 How Much Does a DYNA Street Bob FXDB Cost?

The pricing of this bike ranges from $15,349 to $15,799 or may vary according to the dealership location and there might be some additional charges like freight and surcharge will add on to the price for the motorcycle.

4. Detailed Specifications

4.1 Engine Specs:

Engine Milwaukee-Eight® 114
Displacement 114 cu in
Bore 4.016 in.
Stroke 4.5 in.
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust 2-into-2 offset shotgun; catalyst in muffler
Compression Ratio 10.5:1

4.2 Chassis Specs

Front-Fork Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual-rate spring; gaiter covers
Rear Shocks Hidden, free piston, coil-over mono-shock; 43mm stroke; cam-style preload adjustment
Wheels Type (Front) Black, Annihilator cast aluminum
Wheels Type (Rear), Black, Annihilator cast aluminum
Brakes Type Solid, uniform expansion rotors
Brakes, Caliper Type 4-piston fixed front, and 2-piston floating rear

4.3 Dimensions and Capacities:

Length 91.3 in.
Ground Clearance 4.9 in.
Seat Height, Laden 25.8 in.
Wheelbase 64.2 in.
Rake 30
Trail 6.2 in.
Tire, Front 100/90B19,57H, BW
Tire, Rear 150/80B16,77H, BW
Tire Type Dunlop® Harley-Davidson Series, bias blackwall front and rear
Fuel Capacity 3.5 gal.
Oil Capacity 5 qt.
Weight in Running Order 655 lb.
Weight As shipped 631 lb.

4.4 Performance

Engine Torque 119 ft-lb
Engine Torque Testing Method J1349
Engine Torque RPM 3000
Lean Angle, Right 28.5
Lean Angle Left 28.5
Fuel Economy 47 mpg
Fuel Economy testing method Estimated City/Hwy

4.5 Drive Train

Primary Drive Chain, 34/46 ratio
Overall Gear Ratio (1st) 9.311
Overall Gear Ratio (2nd) 6.454
Overall Gear Ratio (3rd) 4.793
Overall Gear Ratio (4th) 3.882
Overall Gear Ratio (5th) 3.307
Overall Gear Ratio (6th) 2.79

5. Aftermarket Luggage and Modification Options for DYNA Street Bob FXDB

Harley Dyna Street Bob is inspired by old-age bobbers because it can be stripped to the essentials as much as possible which makes it lighter in weight and easier to handle. If you love customizations, this bike is just built for you. It is easy to configure and personalize the street bob which fits your style and personality.


You can always select the different paint options and variety of aftermarket parts available. This bike came with a solo seat but you can customize it by your own choice of seat or any part you like for your daily routine.


You can add sissy bars and some premium quality saddlebags to make this bike look more stunning and take the benefit of these after-market parts while cruising or touring.

Reading next

Harley-Davidson Softail Night Train FXSTB Detailed Specs, Background, Performance, and More

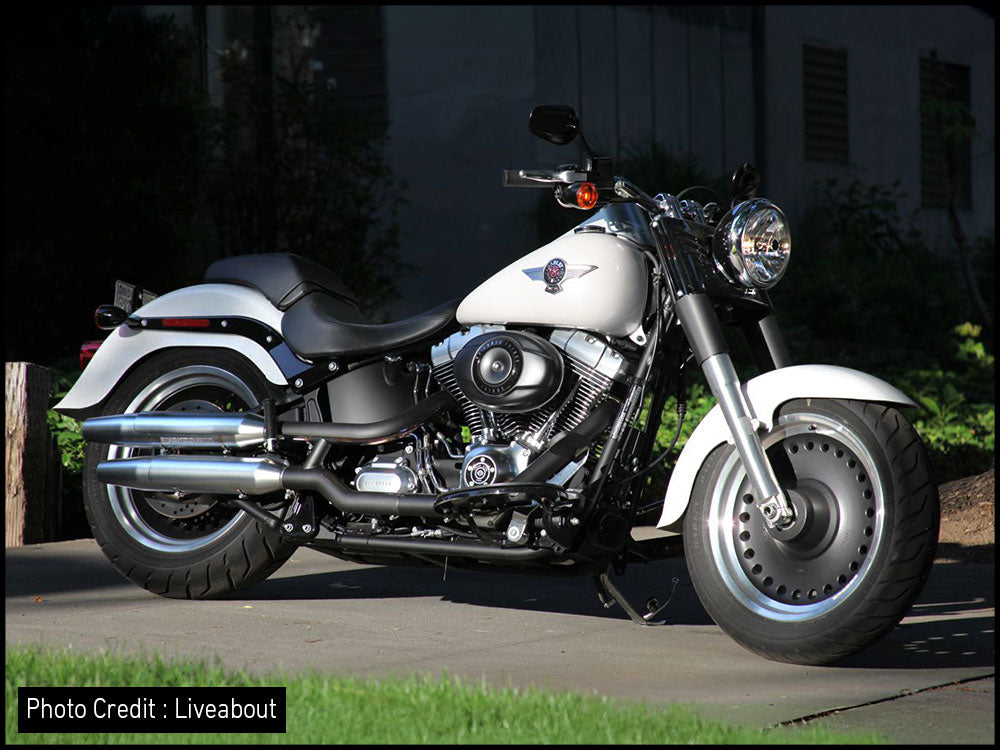

Harley-Davidson Softail Fat Boy Lo Detailed Specs, Background, Performance, and More
